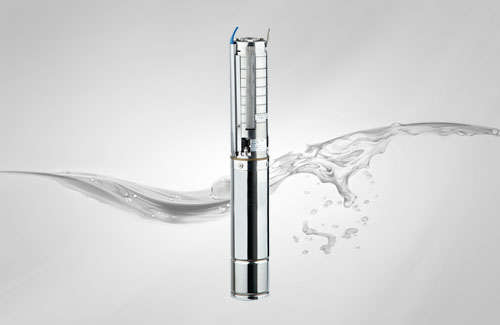

4Inch Deepwell SS Submersible Pump
Introduction
Stainless Steel construction designed for years of trouble free operation. Close coupled to NEMA standard submersible motor. Designed for flow rates upto 14m3/h & head upto 300 meters.
- Groundwater supply to waterworks
- Irrigation in horticulture and agriculture
- Groundwater lowering
- Pressure boosting
- Industrial applications
- Water treatment
Specification
- Capacity: upto 20m3/h
- Head: up to 300 meters
- Power: 0.37Kw (1/2HP) to 7.5Kw (10HP)
- Power supply : single - phase 230V±10%, 50Hz. 220V±10%
60Hz three - phase 230V±10%, 50Hz. 220V±10%, 60Hz three - phase 400V±10%, 50Hz. 380V±10%, 60Hz
- Water temperature: up to 35ºC
- Maximum immersion depth: 350 meters
Features & Benefits
- Stainless impeller and diffuser ensures optimal performance in sandy wells
- High quality shaft bearings providing low friction and high wear resistance
- Built-in check valve prevent back flow
- Strong stainless steel splined drive shaft ensures positive impeller drive
and longer life
- Standard 2 pole speed motor (2850rpm) limits internal velocities
for longer life
- Single phase pump with control box with capacitor and thermal protection
