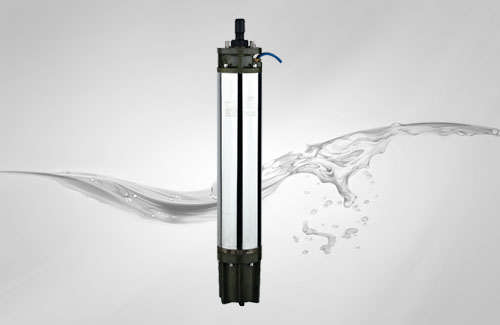

6" SS Submersible Motor - 6SW
Introduction
Motors are designed with quality material and unique features to assure years of dependable operation. NEMA Standard flange connector. Oil-filled motor keeps windings cool, permanently lubricated bearings to provide reliable pump service. Watertight double-insulated cable entry system prevents capillary action and protects against moisture. A rubber diaphragm is provided to guard against pressure and volume variations due to thermal expansion of oil inside the motor.
Direct motor start
- Axial load : 1500 N (0.37 Kw~0.75Kw); 2500N
(1.1 Kw~2.2Kw).4500N(3 Kw~5.5Kw).9000N(7.5Kw)
- Special features on request
- Other voltages
- The length of cable is optional
- Motor adapter: AISI304SS
Specification
- Power: three-phase: 4Kw~18.5Kw.
- Power supply: three-phase 400V±10%, 50Hz, direct start
- Protection class: Ip68
- Insulation class: F
- Water temperature: up to 35ºC
- PH: 6.5 - 8.0
- Minimum water flux through motor: 16cm3/s
- Maximum numbers of start: 20/h
- Maximum submerged on depth: 350m
- Mounting Position: Vertical
- Fluid-lubricated thrust ball axial bearing
- Axial Load: 10,000N(4KW-9.2KW) 20,000N(11KW-18.5KW)
- Anti water connect cable : 3x4.0mm2 (4KW-11KW) 3x6.0mm2
(13KW-18.5KW)
