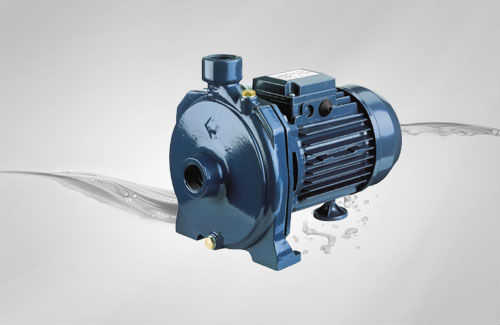

Centrifugal Pumps - CMF


Centrifugal single impeller low head water pumps for flow irrigation systems with high flow fates. Suitable to pump clean water or non-aggressive liquids charged with small solid impurities. To be used in flow irrigation systems, in gardening and agriculture and in industrial fittings.

Condition of Usage

- Maximum Working pressure 3.5 bar

- Liquid temperature up to 60°C, Ambient temperature

  up to 40°C & Total suction lift up to 8m

- Continuous duty


- Casing in CI/Impeller in Bronze, Stainless steel (optional)

- Shaft in SS 303 & Mechanical seal in Carbon/ Ceramic/NBR

Technical Data

- TEFC 2 pole motor with Insulation Class F

- Protection degree IP54/IP55

- I-230 V+/-10% 50HZ, 3-230/400V+/-10% 50HZ

- Permanent split capacitor and automatic thermal overload for

  single phase version

- Thermal protection to be provided by the user for three phase version
