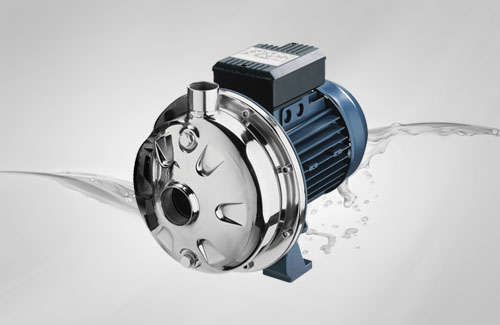

SS Centrifugal Pump - CX


- Water supplying systems
- Pressure boiler feeding
- Pure water treating systems
- Pharmaceutical industries
- Washing and sprinkling Standard mechanical seal:
  NBR/ceramic/carbon (Other mechanical seal materials are   available upon request)

Condition of Usage

The pumps are suitable for transporting clean media which are non-aggressive to stainless steel SUS304 or SUS316L.


- Casing, back-cover, impeller and pump shaft: in SS 304 for  Micro CX models and in SS 316 for Micro CXL model   stainless steel.

- Bracket and motor housing: Aluminium-alloy

- Standard mechanical seal: NBR/ceramic/carbon
  (Other mechanical seal materials are available upon

Technical Data

- TEFC 2 pole motor with Insulation Class F

- Protection degree IP54/IP55

- I-230 V+/-10% 50HZ, 3-230/400V+/-10% 50HZ

- Permanent split capacitor and automatic thermal overload for single phase    version

- Thermal protection to be provided by the user for three phase version
