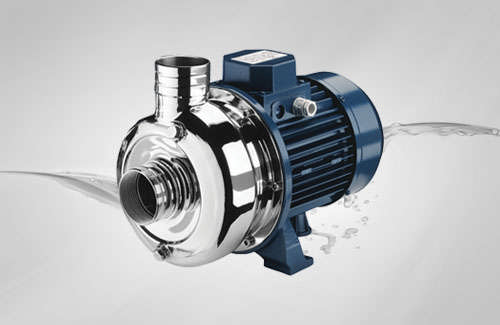

Semi-Open Impeller SS Centrifugal Self Priming Pump - DW-CE
Application
The pumps are suitable for transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer. The pumps can be applied on industrial applications, domestic, washing, pool and irrigation etc.
Performance Limits
- Liquid temperature: 15°C~+80°C
- Max. Working pressure: 8 bar
- This pump can be used at full head without overloading
motor
Material
- Casting, impeller back cover and shaft: SUS304
Technical Data
- TEFC 2 pole motor
- Insulation Class F
- Protection degree IP54/IP55
- 1-230 V+/-10% 50HZ, 3-230/400V+/-10% 50HZ
- Permanent split capacitor and automatic thermal overload
versionfor single phase
- Thermal protection to be provided by the user for three phase version
