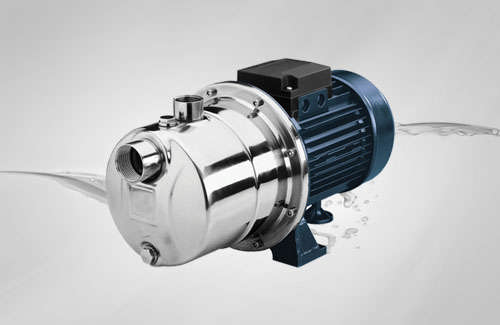

Centrifugal Self Priming Pumps With SS Body - JET-X
Application
Series self-priming electric pumps, equipped with waterproof plug & power cord and watertight switch. It is suitable for gardening, water supply, washing, increasing water pressure, ect. It is usually can be combined with a pressure switch and surge tank to be used as Domestic Water System for distributing water.
Motor
- T. E. F. C., class F insulation
- Ip55 protection, continuous duty
- Maximum ambient temperature: +40°C
- Single phase version: 220V/50Hz, 2800rpm
- Three phase version: 380V/50Hz, 2800rpm
- Overload protection can be provided upon request
Material
- Pump body: SUS304/SUS316
- Impeller: PPO/SUS304/SUS316
- Mechanical seal: NBR/ceramic/carbon
(Special materials are available upon request)
Working Condition
- Suction/Discharge size: G1"
- Max. Working pressure: 6 bar
- Max. Working temperature: 45°C
- Max. Suction head: 8m
