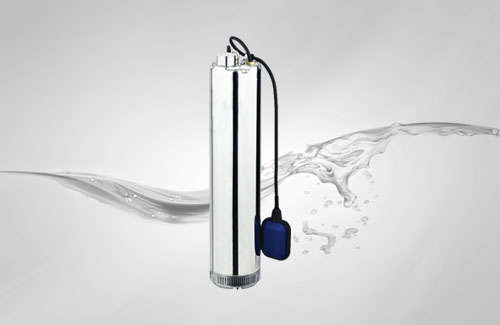

Deepwell Submersible Pump - MXS
Application
- For water supply from wells, tanks or reservoirs
- For domestic use, for civil and industrial applications
- For garden use and irrigation. Utilization of rain water
Operating Condition
- Water temperature upto 35ºC
- Minimum internal diameter of well: 132mm
- Minimum immersion depth: 100mm
- Maximum immersion depth: 20m
(with suitable cable length)
- Continuous duty
Material
- Casing cover, Impeller diffuser, Shaft in SS304
Motor
- 2-pole induction motor
- MXS: three phase 230 v±10%, 50Hz; 230 v±10%, 60Hz; three phase 400
380 v±10%, 60Hz;
- MXSM: single phase 230v±10%
- Float switch (on demand)
- Cable: length 15m
- Insulation class: F
- Protection class: IP 68 (for continuous imersion)
