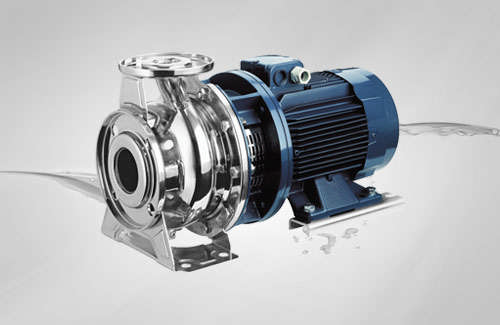

SS Centrifugal Pump - ZX

Application

The pumps are suitable for transporting clean media which are non-aggressive to stainless steel SUS304 or SUS316
- Water supplying systems
- Pressure boiler feeding
- Pure water treating systems
- Pharmaceutical, food and
- refining chemical industries
- Washing and sprinkling

Technical Data

- Asincronous 2 and 4 pole motor

- Insulation class F

- Protection Degree IP 55

- Thermal protection by user

Performance Limits

- Max. Working pressure:10bar

- Mechanical seal working temperature:
     1. With NBR/ceramic/carbon: 80ºC
     2. With Viton/ceramic/carbon: -200C~+110ºC
     3. With silicone rubber/ceramic/stainless steel: -20ºC~+110ºC

- ZX - CASING, IMPELLER, SHAFT IN SS 304

- ZXL - CASING, IMPELLER, SHAFT IN SS 316

- ZX (S) - STUB SHAFT MONOBLOC WITH STANDARD MOTOR AND
FLEXIBLE COUPLING

- AVAILABLE IN 4 POLE, BARE SHAFT MODELS AS OPTIONAL
